F405/407
Standard Flight Controller
Powerful. Reliable. Built for Performance.
F4 flight controller with Bluetooth connection, dual BECs, Type-C USB, OSD, DJI Air Unit plug support, and 3S-8S LiPo input for 7-15 inch UAV platforms.
Product Capabilities
A reliable standard flight-control platform for integrators who need Bluetooth setup, wide input voltage, and practical onboard interfaces.
Built for 7-15 inch UAVs
A compact standard FC platform for a broad range of FPV and fixed-wing UAV builds.
Wireless tuning workflow
Bluetooth connectivity makes field setup and tuning more convenient for integrators and operators.
Dual BECs, 8S capable
3S-8S LiPo input with 5V 2A and 10V 2A outputs for practical airframe integration.
OSD, DJI plug, UARTs
Includes OSD, 6-pin DJI Air Unit plug support, 6 UARTs, ESC telemetry, I2C, SBUS, and buzzer pads.
Main Parameters
Key configuration and interface parameters for the F405/407 Standard FC V1.
Core Platform
- Core Platform Product Name
- F4 FC With Bluetooth connection and Two BECs, 8S capable
- Applicable UAV Size
- 7-15 inch
- MCU
- F405/407 MCU
- IMU(Gyro)
- ICM42688
- USB Port Type
- Type-C
- Mounting
- 30.5 x 30.5mm (4mm hole diameter)
Power
- Power Power Input
- 3S - 8S LiPo
- 5V Output
- 5V 2A
- 10V Output
- 10V 2A
- 4.5V Output
- Supported for receiver and GPS module
- Current Sensor Input
- Supported. For the 4in1 ESC in stack, use scale 168
Flight & Firmware
- Flight & Firmware Supported Flight
- BetaFlight(Default) / Arducopter / INAV (F722 has no Arducopter firmware support)
- Firmware Target Name
- Firmware will be pre-flashed when order the FC
- OSD
- Yes
- Barometer
- Optional
- Blackbox
- Optional 16Mbit
Connectivity

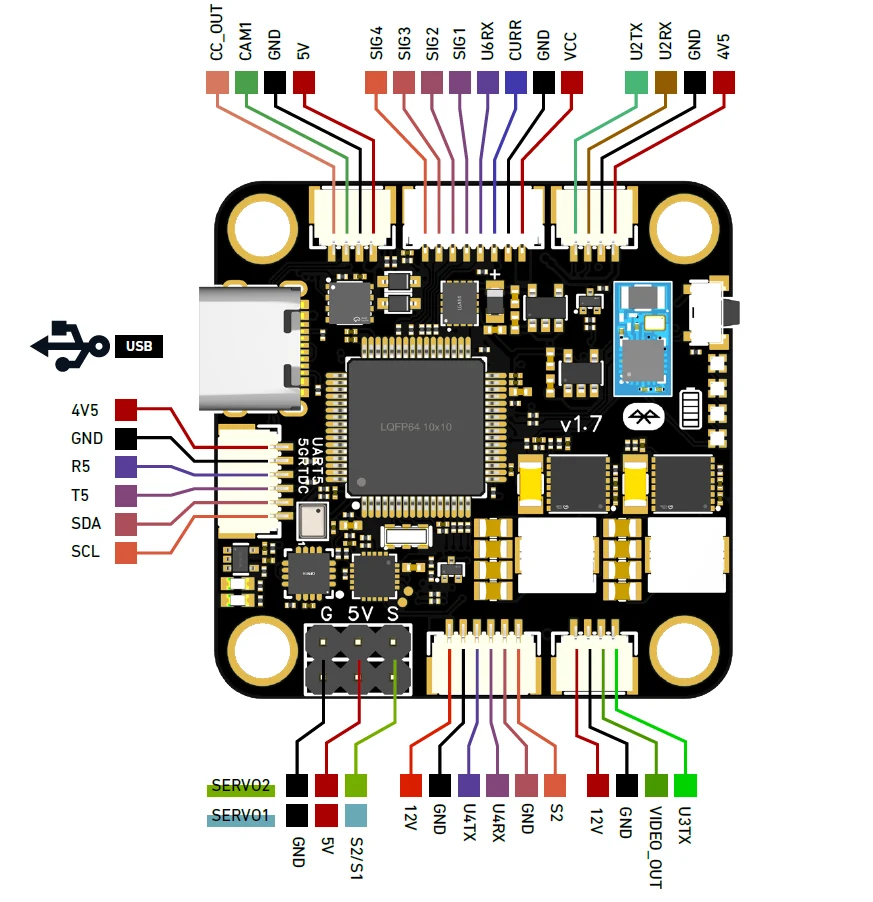

- Connectivity 6-pin DJI Air Unit Plug
- Yes
- ESC Signal
- 4x Motor output
- UART
- 6 x UARTs
- ESC Telemetry
- Yes
- I2C
- Yes
- Traditional Betaflight LED
- Yes
- Buzzer
- BZ+ and BZ- pad used for 5V Buzzer
- BOOT Button
- Yes
- SBUS
- Yes
